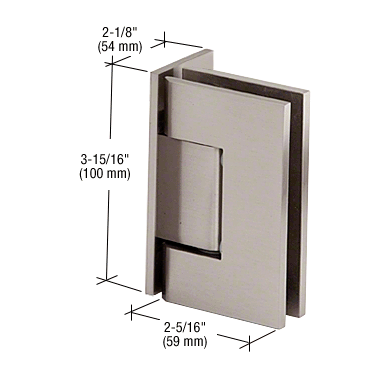

CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of “mouse-ears” type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it’s own CRL “mouse-ears” cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it’s own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.

​

•  Accommodates 3/8″ to 1/2″ (10 to 12 mm) Glass

•  Available in Several Beautiful Finishes

•  3 Year Warranty

•  5º Pre-Set Model (Factory Set for 5º Tighter Closure Into Shower Interior)

Part # - V1E544BN
